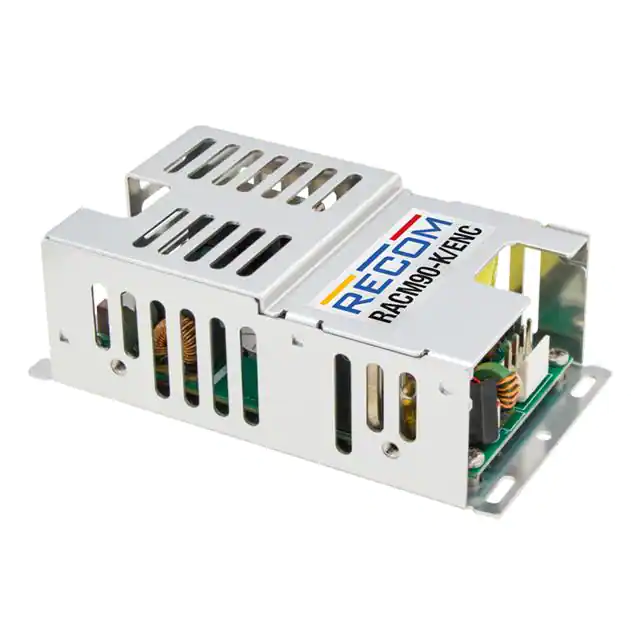

RACM90-K Series AC/DC Power supply from RECOM Power
RECOM Power's RACM90-K AC/DC power supply series delivers 90 W output and is rated by safety standards for the medical, ITE, industrial and household markets with limited power supplies. Models come in industry standard 2" x 4" sizes and are available in open power card or with case versions.
Rated for a wide range of inputs from 100 VAC to 240 VAC, the output is strictly regulated, and the full compliance margin to EN55032 Class B EMC standards allows for easy system integration. The series is certified to remain valid up to 4,000 m above sea level and has a wide operating temperature range, making it one of the most versatile products on the market.
Features
● Wide input range: 85 VAC to 264 VAC
● Operating temperature range: -40°C to +90°C
● OVC III and LPS grades
● 2MOPP Medical Certification meets Class B and BF standards
● Working height of 4000 m
● Built-in Class B EMC filter
Applications
● Medical equipment
● Home application
● Industry
● ITE
